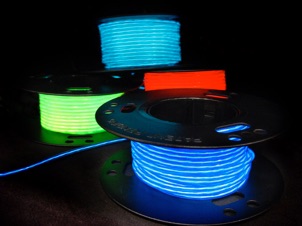

LyTec® Mechanism

LyTec® technology is based on the infrastructure of electroluminescent (abbreviated as EL), is formed by a thin copper wire coated in a phosphor which glows when an alternating current is applied to it. Electroluminescent is an optical phenomenon and electrical phenomenon in which a material emits light in response to the passage of an electric current or to a strong electric field.

LyTec® construction consists of seven major components;

1. Core wire - solid cooper wire

2. Dielectric layer

3. Phosphor layer

4. Transparent conductive layer

5. Spiral wire

6. First protective layer (HDPE or PVDF)

7. Second protective layer (PVC or PVDF)

Core wire

Phosphor layer

1st protective layer

2nd protective layer

LyTec® Standard Color

LyTec® comes in 8 standards color

1. Red

2. Orange

3. Green

4. Blue

5. Lime

6. White (Non standard)

7. Yellow

8. Aqua

9. Pink

10. Purple (Non standard)

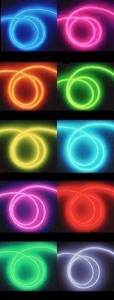

Color listed above are corresponded to picture as shown.

LyTec® Product list

General Grade LyTec®

2.3mm (Single core)

3.2mm (Single core)

Aqua, Blue, Lime, Green, Pink, Orange, Red, Yellow

GC 123 XX

TF 132 XX

Rounded

T-shape

Please click here to download catalogue

Types of LyTec® Model No. Shape Units Outer Diameter Color Availability Specs

Advance Grade LyTec®

2.5mm (Single core)

4.0mm (Double core)

5.0mm (Single core)

3.2mm (Single core)

3.5mm (Double core)

Aqua, Blue, Lime, Green, Pink, Orange, Red, Yellow

HC 125 XX

DF 140 XX

TC 150 XX

HC 232 XX

TF 232 XX

WC 235 XX

Rounded

D-shape

Rounded

T-shape

Oval-shape

Professional Grade LyTec®

3.0mm (Single core)

5.0mm (Single core)

3.5mm (Double core)

5.0mm (Double core)

5.0mm (Single core)

6.5mm (Single core)

Aqua only

Aqua, Blue, Lime & Green

Aqua only

Aqua, Blue, Lime & Green

Aqua, Lime & Pink only

MR 130 XX

MR 150 XX

WN 235 XX

WN 250 XX

LR 150 XX

LR 165 XX

Rounded

Oval-shape

Rounded

meters

Download

Inverters Model No. Description Operating voltage Support range Specs

Inverters

LP000002C

HI005025D

HI020100D

IF4P Inverter

E12-906R Inverter

E12-972-A4J Inverter

Download

DC 3V or Battery (AA x 2pcs)

DC 12V

1 to 2 meters

5 to 25 meters

20 to 100 meters

Accessories Model No. Description Support Unit Specs

Adaptor

F2312100JP

F2312150US

R2312100EU

12V / 1A Switching PSE (NLB100120W1J)

12V / 1.5A Switching UL (FJ-SW1280e031)

Universal AC/DC 1 AMP 2 Pin for EU

N/A

HI005025D

&

HI020100D

Accessories Model No. Description Support Unit Specs

End cap

Extension wire

Multi-output splitter

EC13

EC32

EW15

EW30

EW50

MS3

End cap 1.3mm (for custom cut fiber end protection)

End cap 3.2mm (for custom cut fiber end protection)

Extension cable 1.5m length (with connectors)

Extension cable 3.0m length (with connectors)

Extension cable 5.0m length (with connectors)

Multi-output splitter x 3 outputs

N/A

1.2mm fiber

3.0 - 3.2mm fiber

Blue

Orange

Yellow

Purple

Green

Pink

Lime

Aqua

Red

White

The General Grade LyTec® was primarily designed for various indoor applications - indoor signage, decorations, car decorations. With its soft physical feature it maintains a high flexibility for DIY purposes.

The Advance Grade LyTec® was primarily designed for various outdoor applications - outdoor signage, events decorations, apparels. With the mechanical enhancement and increase in sizes, it is easier for installation and increase the presence of LyTec®.

The Professional Grade LyTec® was primarily designed for various safety and emergency applications.

The “MR” series are dedicated to operate under humidity environments, which has constructed with high humidity resistance polymer to enhance its durability under this circumstances.

The “WN” series are dedicated for evacuation guiding applications, which require long lengths in operations. Besides having the same features of MR series, the WN series has enhanced its mechanical structure for higher requirement.

The “LR” series are dedicated for evacuation guiding applications under harsh, humid environment with anti-impact shock performance. With its superior mechanical strength and performance it has been often used by government officials for various environmental and life savings operations.

Construction Grade LyTec®

3.5mm (Double core)

5.0mm (Double core)

6.5mm (Double core)

Please check with us for availability

NF 435 XX

NF 450 XX

NF 465 XX

Rounded

meters

The Construction Grade LyTec® was primarily designed for construction projects like highway, tunnel. For further details please check with our sales representatives.
